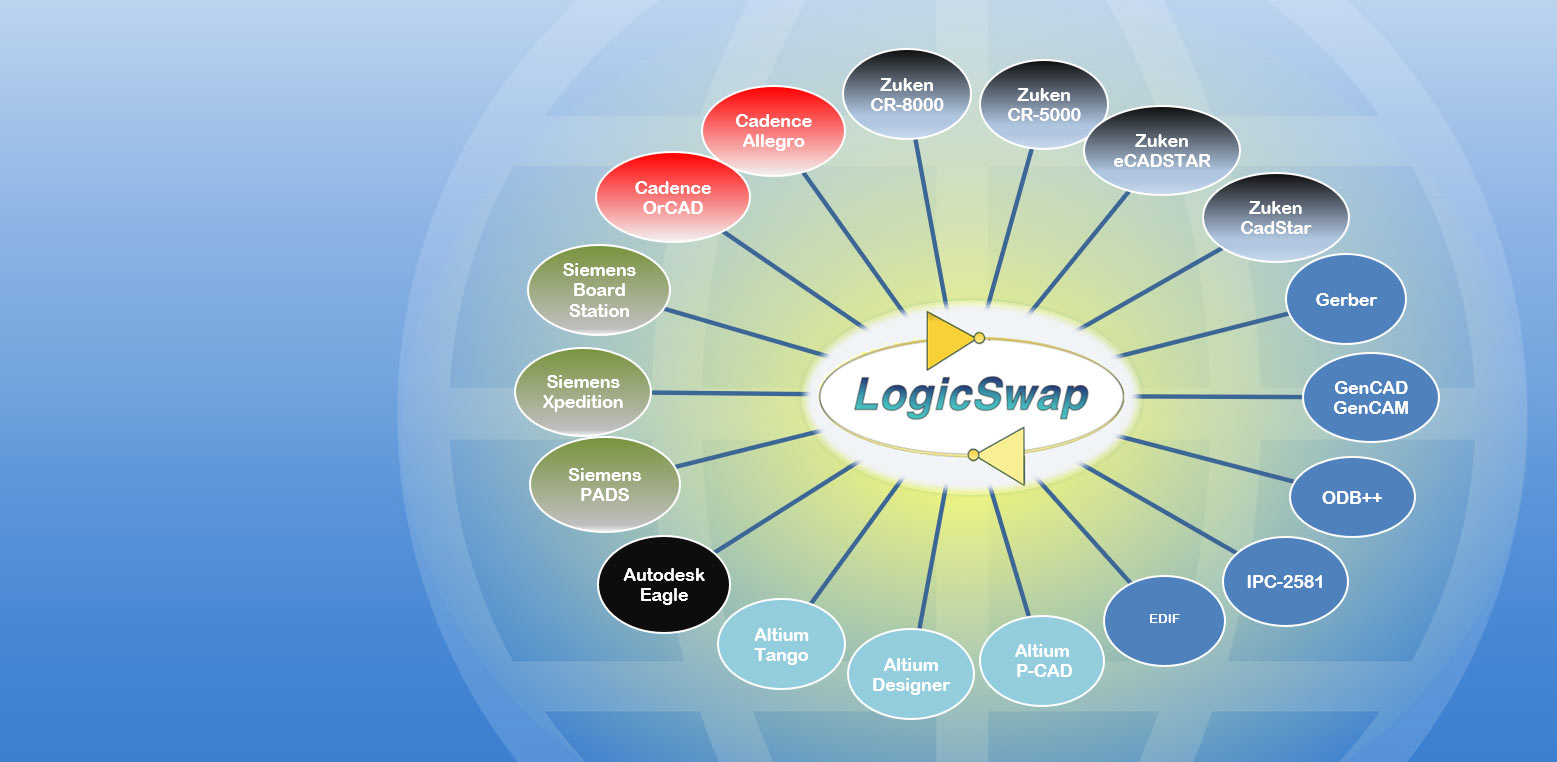

LogicSwap Solutions is world renowned for EDA migrations, supporting all leading EDA vendors. We offer migration products and services for E-CAD libraries, schematics, and PCB designs.
Whether you are up-scaling to higher level enterprise EDA solution or downscaling to escape high, annual maintenance, or subscription costs, LogicSwap Solutions will help to preserve your EDA assets and your design IP to save you money. Let us be your Single Source for EDA migrations.
Consider a Basic or Advanced Migration

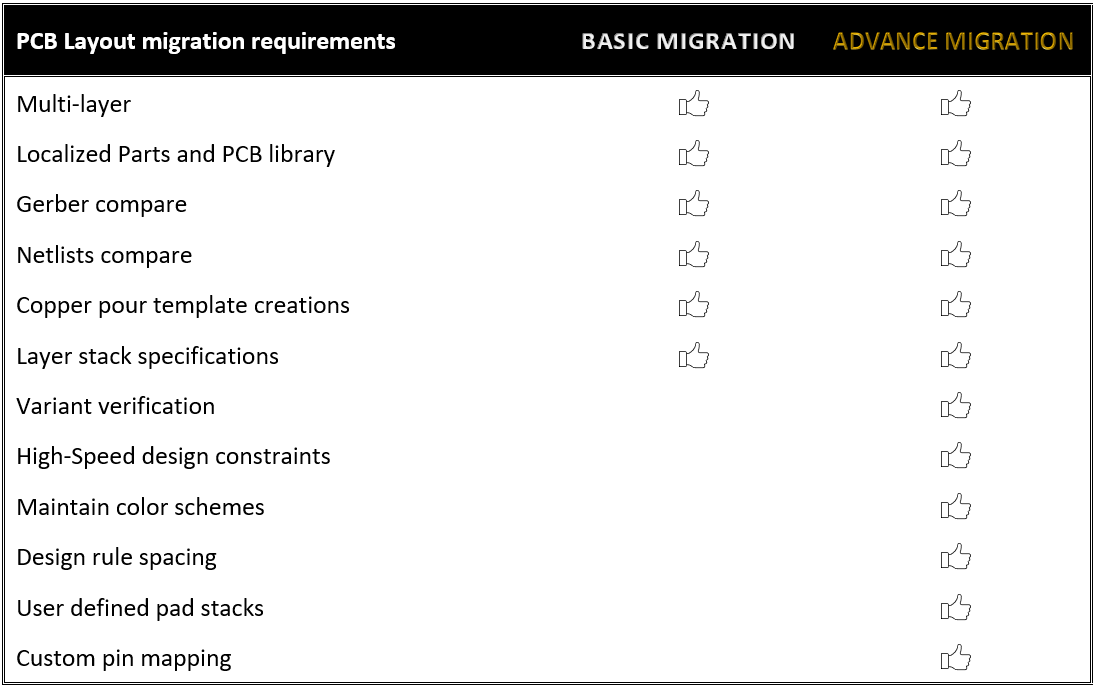

| PCB Layout Migration Requirements | Basic Migration | Advanced Migration |
|---|---|---|
| Multi-Layer | 👍 | 👍 |
| Localized Parts and PCB Library | 👍 | 👍 |
| Gerber Compare | 👍 | 👍 |
| Netlists Compare | 👍 | 👍 |
| Copper Pour Template Creation | 👍 | 👍 |
| Layer Stack Specifications | 👍 | 👍 |
| Variant Verification | 👍 | |
| High Speed Design Constraints | 👍 | |
| Maintain Color Schemes | 👍 | |
| Design Rule Spacing | 👍 | |
| User Defined Pad Stacks | 👍 | |
| Custom pin mapping | 👍 |
- Free proof of concept migration.
- Upload a detailed PDF of your PCB design.
- For confidentiality, upload your corporate NDA.
- If your design is Import/export controlled (ITAR), do not send. Please advise us in advance.
- Please compress and encrypt/password protect all files to be uploaded.
